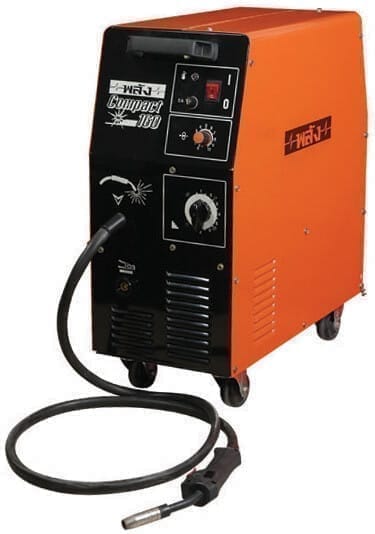

Power source is designed for MIG/MAG welding.
The output characteristics are at constant voltage with stepped adjustment.
Stepless electronic speed control is added for easy adjustment.
Features as 2 time welding,post-gas and burnback help the operator in obtaining the best result.
Easily connect the output terminals by using twist-lock female snd male connectors.
- Easy displacement with wheel.
The forced-air cooling system by fan.
Thermal overload protection.
|Input Voltage (V)||220|
|Input Power (kW/kVA)||5.0|
|Current Range (A)||20-160|
|Duty Cycle (%)||20|
|No-Load Voltage (V)||15-29|
|Wire Size (mm)||MS/SS/AL 0.6-0.8|
|Dimension (W x D x H) (Cm)||27x61x62|
