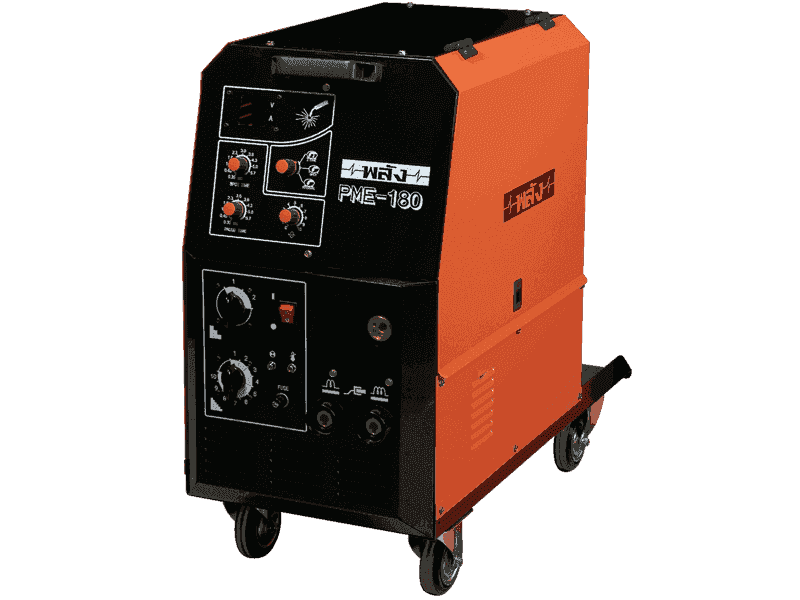

PME-180

PME-180




      "PME-SERIES" power source is designed for MIG/MAG welding on mild steel, stainless steel and non-ferrous materials.

      The output characteristics are at constant voltage with stepped adjustment. Stepless electronic speed control is added for easy adjustmen. Features as 2 time, spot and interval welding as well as post-gas flow and burnback help the operator in obtaining the best parameters. The real-time digital voltamp meter is installed as an option.

      Easily connect the output terminals by using twist-lock female and male connectors with inductance outlets for optimized performance. Easy displacement with wheel.

      The forced-air cooling system by fan, overload protection and special internal insulation features add to the durability of this machine.





{{spec}}


Specification Value
Input Voltage (V) 220 | 380
Input Power (kW/kVA) 5.5 | 5.3
Current Range (A) 30-180
Duty Cycle (%) 40
No-Load Voltage (V) 15-31
Adjustment Range 10
Wire Size (mm) MS/SS 0.6-1.0 AL 0.8-1.0
Dimension (W x D x H) (Cm) 38x91x63
Weight (Kg) 74 | 79
Standard Accessories MK-203-16
